ELECTRIC CHAIN HOIST



Simple And Easy To Use

Simple and easy to use – reliable and safe in operation – long-lasting and easy to maintain. GIS electric chain hoists have been developed and manufactured in Switzerland for more than 50 years. Hundreds of thousands of them are in operation worldwide – stationary or mobile.

For many lifting tasks GIS electric chain hoists offer the perfect solution. Depending on the complexity of the demand special products come to use. If synchronous lifting of 2 load hooks, a corrosion resistant or explosion proof execution - we offer a custom-designed solution for every requirement.

Electric
Chain Hoist GP

Corrosion Resistant
Electric Chain Hoist

Electric Chain Hoist
Explosion Proof

Electric Chain Hoist
Frequency Controlled

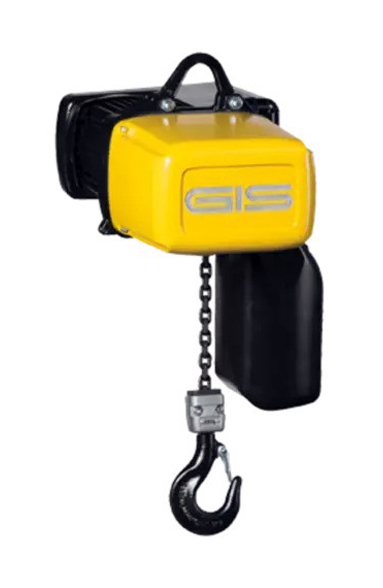

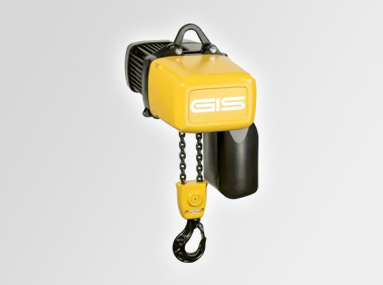

Electric Chain Hoist GP

GPM250, GP250 - 2500, up to 6300 kg

Reliable And Long-Lasting

3 year warranty on all GP electric chain hoists

Chain safety factor minimum 8-times (DIN EN 14492 A5, ISO M5)

All GP chain hoists with IP65 protection as standard

Easy To Operate

Hoists with up to 60 % higher lifting capacity

Quiet running with 3-step drive and helical gearing

Polygon connections ensure quick assembly and disassembly

Customer Specific

Chain hoists in three- or single-phase version

Direct control, special control, radio remote control, frequency inverter

Special versions such as synchronized electric chain hoist, low headroom version, corrosion resistant version, ATEX

Corrosion Resistant Electric Chain Hoist

GPR500 + 1000, up to 1250 kg

General Features

Corrosion resistant electric chain hoist

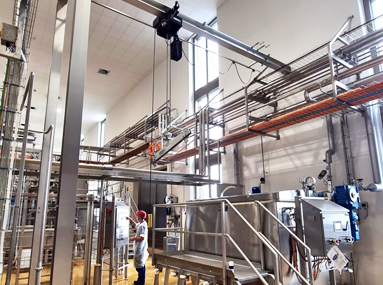

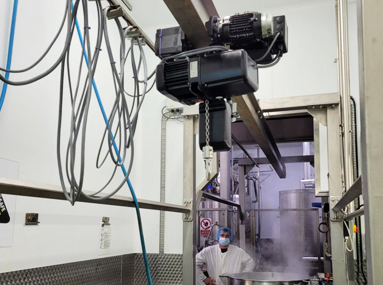

Chain hoist for use in food, pharmaceutical or chemical industry, wastewater treatment plants, outdoor use

Housing cataphorese coated

Round, stainless steel chain

Suspension of the chain hoist corrosion resistant

All parts in contact with the chain (wearing parts such as chain wheel, load hooks, screws) in corrosion resistant version

Protection class IP65

Special grease for food industry

Option: over pressure release valve

Option: manual or motorised trolley in corrosion resistant version

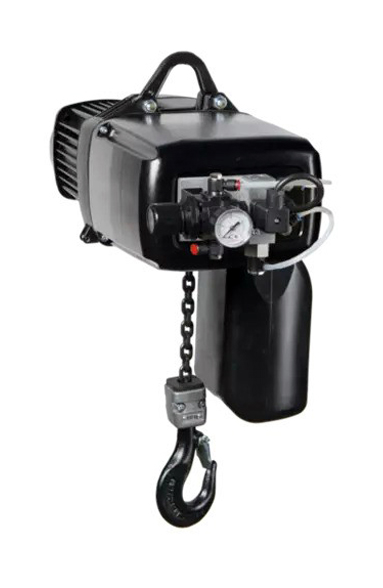

Electric Chain Hoist Explosion Proof

GP250 – 2500 ATEX, up to 6300 kg

General Features

Electric chain hoist explosion proof ATEX version

Available in a dust- and gasproof execution

For zones 22 (D) and 2 (G)

Protection class IP65

Option: motorised trolley in ATEX version

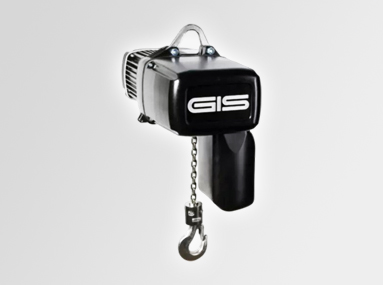

Electric Chain Hoist Frequency Controlled

GPFU250 - 2500, up to 6300 kg

General Features

Electric chain hoist with frequency inverter

For applications with high switching frequency and shift operation

Lifting speed up to 9.6 m/min.

With soft start for precise and gentle positioning of the load

Transportation without overshooting and exact positioning of the load in combination with frequency-controlled motorised trolley

Speeds and ramps for lifting and travelling programmable adjusted to the application

Protection class IP65

Option: motorised trolley with frequency inverter

Option: equipped with radio remote control

Option: load-dependent lifting
